Hand Stretch Film Gauge Guide: How to Select the Proper Thickness for Your Products

In packaging, the proper hand stretch film gauge is essential to secure your products, enhance load stability, and minimize costs. This guide will describe what “gauge” is, how it influences film performance, and how to select the ideal thickness for your particular needs.

Hand Stretch Film Gauge: What It Is

Hand Stretch Film Gauge is film thickness, measured in mils (1 mil = 0.001 inch) or millimeters. Gauge has a direct impact on the film’s strength, flexibility, and puncture resistance. Hand stretch films from Weide Chuangyi Packaging are manufactured from superior LLDPE material, and the thickness range is between 0.018mm and 0.050mm. These correspond to best-selling gauges such as 50ga, 60ga, 70ga, and 80ga, providing an excellent option for every packaging application.

How Gauge Affects Stretch Film Performance

Load Stability and Safety

One of the most significant functions that hand stretch film serves is to give loads stability during transport. Proper gauge ensures that your goods remain in one piece even during conditions of vibrations and stacking pressure. Thicker gauges, such as 80 gauge, are most appropriate for guarding heavier items such as machinery parts or appliances.

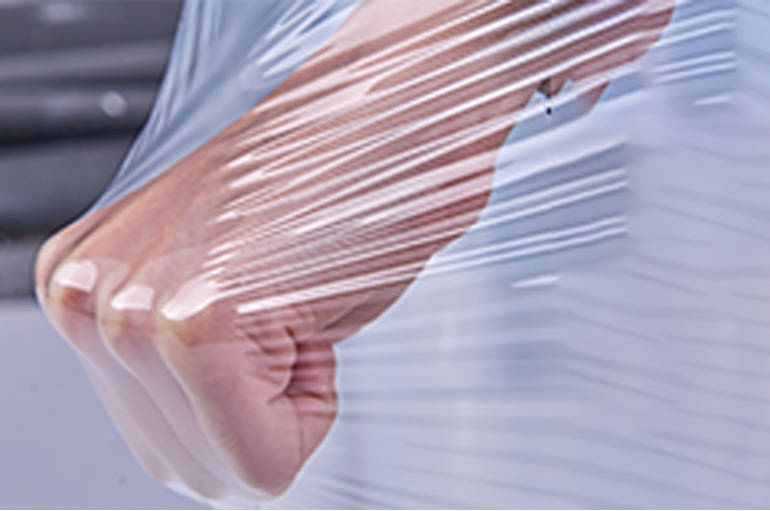

Film Strength and Puncture Resistance

Thicker films provide increased puncture resistance — a valuable consideration when wrapping objects with sharp edges or an irregular surface. Our hand stretch films based on LLDPE are highly tear-resistant, have high tensile strength, and are perfectly suited for industrial use.

Cost Efficiency

While heavier gauges will offer more protection, they also cost more. For businesses exporting light-weight products in quantity, the use of a lower-gauge film can save significant amounts without compromise on protection. Therefore, being cost-effective while fulfilling protective needs is most important.

Common Gauges and Applications

This is a helpful reference to selecting the right gauge for your products:

Selecting the Right Gauge for Different Products

Lightweight Products (like paper boxes)

If you are shipping small cartons or paper boxes that don’t pose much risk of shifting or getting damaged, a 50-60 gauge hand stretch film will usually suffice. These are economical and easy to apply by hand. Our Hand Stretch Film has excellent self-adhesion and tight wrapping, which allows even lower-gauge films to secure light loads.

Medium-Weight Shipments (e.g., electronics, appliances)

For relatively heavy items such as home appliances or electronics packed in standard cartons, apply a 70-gauge film. It offers sufficient hardness and flexibility without being too bulky. Weide Chuangyi Packaging offers Stretch Film Rolls within this range, which are widely applied in industries such as logistics and home appliance sectors, where safe yet efficient packaging is a necessity.

Heavy or Irregular Loads with Sudden Edges (e.g., machinery, metal parts)

For heavy metal pieces, ceramics, or bundled hardware items with pointed corners, an 80-gauge hand stretch film is to be used. It is the thickest that can offer complete puncture resistance and hold the cargo in place throughout delivery. After wrapping using stretch film, it prevents the goods from scattering during loading, unloading, and transportation, which is very important in businesses such as ceramics and mechanical parts, where product integrity must be assured.

Quick Guide to Measuring

Remember these points while choosing a hand stretch film gauge:

• Load Weight: High loads require greater gauge films.

• Shape & Surface: Harsh or unsmooth shapes require heavier films.

• Stacking: Products that are stacked in transit require stronger films in order to avoid movement.

• Cost Constraints: Balance protection and the cost of material.

• Application Method: Hand wrapping, as opposed to machine wrapping, may play a role in gauge choice.

By having the answers to these questions, you can simply narrow down the best film for your shipment.

Why Choose Weide Chuangyi Packaging Films?

Consistent Quality and Performance Standards

Weide Chuangyi Packaging has been a reliable brand since 2004 in producing superior packaging materials like top-class LLDPE material-based stretch films. Our films have the reputation of having good self-adhesion, high transparency, excellent tear resistance, and being able to perform optimally in various packaging environments.

Various Gauge Options Available Online

We manufacture hand-applied as well as machine-made stretch films with variable parameters like width (100–1400mm) and thickness (0.018–0.050mm). That allows us to cater to a diverse array of industry needs, from logistics to hardware and home appliance industries. You are welcome to see our entire range of products, like Hand Stretch Film, Machine Stretch Film, and accessories, on our official website.

Expert Support and Guidance

We don’t just provide packaging materials — we help you choose the right one. Our team works with customers to identify their packaging requirements and propose solutions according to their business requirements. You can contact us via phone on +86 13360307579 or email jaminluo668@gmail.com and get professional advice on how to choose the right hand stretch film gauge for your business.

FAQ

Q: What is the difference between machine stretch film and hand stretch film?

A: Machine stretch film is used by automatic machines and is optimally suited for high-volume production. Hand stretch film is applied manually and suits low-volume packaging processes better.

Q: Can the width and thickness of the hand stretch film be customized?

A: Absolutely! Weide Chuangyi Packaging offers customized specifications like width (100–1400mm) and thickness (0.018–0.050mm).

Q: Is your hand-stretch film environmentally friendly?

A: Our LLDPE films are recyclable and made with high standards of quality to reduce waste while maintaining performance.

Q: How can I find the appropriate gauge for me?

A: Refer to our guide above or contact our support team, who can assess your product type and shipping conditions to recommend a good match.
