PET Strapping Belt/Heavy Duty Packing Belt
PET strapping is a polyester packaging strap used to secure industrial products during handling, storage and transport. Available models cover widths from 9 mm to 32 mm, with listed breaking force values from 1,920 N to 15,360 N.

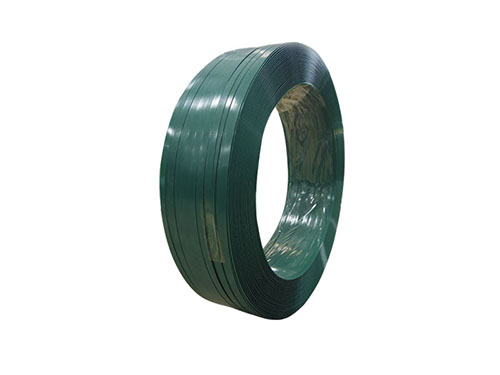

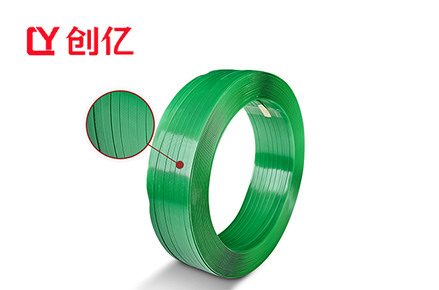

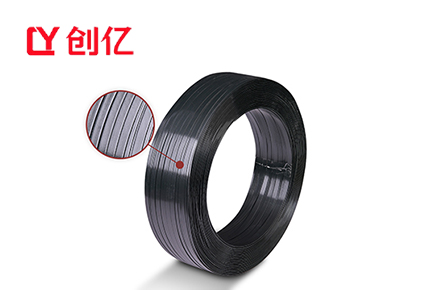

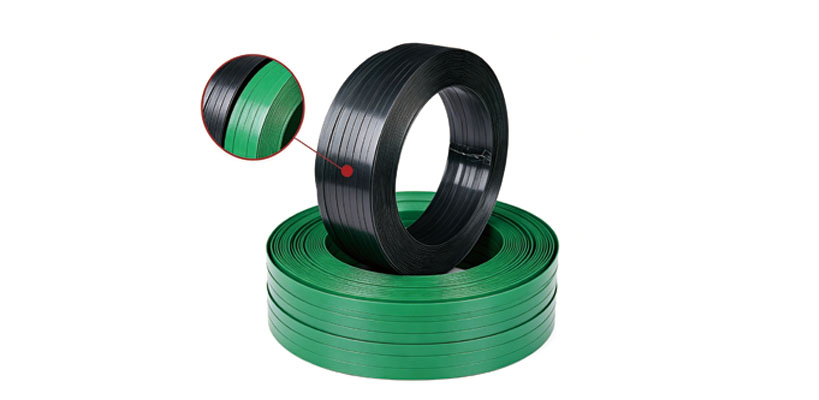

The strap is available in green or black. Customization is supported.
Product Details
| Product: PET Strapping | Material: PET |
| Color: Green/Black | Width: 9-32mm |
| Thickness: 0.6*-1.2mm | Weight: 15kg/20kg/25kg |
| Brand: Xinmingyi | Manufacturer: Foshan Xinmingyi Packaging Materials Co., Ltd. |
| Packaging: Kraft Paper/Stretch Film | Condition: Brand New |
| Applicable Industries: Machinery and Equipment | Use: Strapping for Product Packaging |
| Imported: No | Customization Supported: Yes |
| Installation Method: Used with Strapping Machines | Stock Age: Brand New Stock |
| Application: Industrial Packaging | Model: Multiple Models Available |
| Product Center: Professional R&D and Production of High-Quality Products |
Feature
-
PET Polyester ConstructionThe strap is extruded from PET polyester and formed through unidirectional stretching. Available models are designed for industrial bundling and load-securing applications.
-

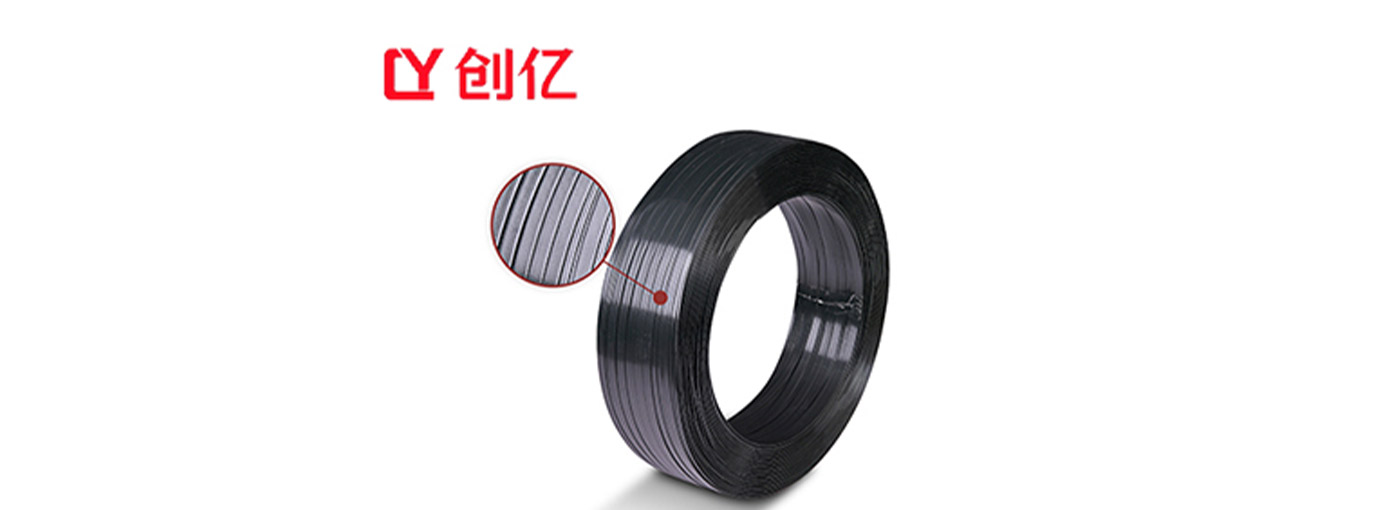

Embossed Surface
The embossed pattern increases surface contact between the strap and the load. This helps the strap grip the packaged product during handling and transport.
-
Smooth Edges for HandlingPET strap does not have the sharp metal edges associated with steel strapping. Correct tensioning, suitable tools and edge protection should still be used for each load.
-
Explosion-proof and crack-proof
High strength and toughness, not easy to crack, resistant to bending and folding, no splitting or cracking, suitable for all climates
-
Multiple Strength OptionsBreaking force depends on the selected width and thickness. The available models range from 1,920 N to 15,360 N based on the values in the current product specification table.
-
Sizes for Different Loads&Customization Support
Widths from 9 mm to 32 mm are listed. Narrower and wider models are available for different packaging requirements; final selection should be based on load weight, package edges, transport conditions and equipment.
Color, size, roll weight and other requirements are subject to specification review. Send the required dimensions and application details before requesting a quotation.
Product Specification
| ITEM NO. | WIDTH | THICKNESS | LENGTH | WEIGHT | BREAKING FORCE |
| PET-09006 | 9.0mm | 0.6mm | 2840m | 20kg/roll | 2160N |
| PET-12004 | 12.0mm | 0.4mm | 3220m | 20kg/roll | 1920N |
| PET-12005 | 12.0mm | 0.5mm | 2560m | 20kg/roll | 2400N |
| PET-12006 | 12.0mm | 0.6mm | 2140m | 20kg/roll | 2880N |
| PET-12506 | 12.5mm | 0.6mm | 2060m | 20kg/roll | 3000N |
| PET-16006 | 16.0mm | 0.6mm | 1600m | 20kg/roll | 3840N |
| PET-16007 | 16.0mm | 0.7mm | 1360m | 20kg/roll | 4480N |
| PET-16008 | 16.0mm | 0.8mm | 1200m | 20kg/roll | 5120N |
| PET-16009 | 16.0mm | 0.9mm | 1060m | 20kg/roll | 5760N |
| PET-19008 | 19.0mm | 0.8mm | 1020m | 20kg/roll | 6080N |
| PET-19010 | 19.0mm | 1.0mm | 960m | 20kg/roll | 7600N |
| PET-19012 | 19.0mm | 1.27mm | 640m | 20kg/roll | 9654N |
| PET-19014 | 19.0mm | 1.40mm | 580m | 20kg/roll | 10640N |
| PET-22006 | 22.0mm | 0.6mm | 1160m | 20kg/roll | 5280N |
| PET-25010 | 25mm | 1.0mm | 620m | 20kg/roll | 10000N |
| PET-25012 | 25mm | 1.20mm | 520m | 20kg/roll | 12000N |
| PET-32012 | 32mm | 1.20mm | 400m | 20kg/roll | 15360N |
Application
PET strapping is available for packaging and securing products in the following sectors:
- Timber and wood products
- Metal products
- Building materials
- Fruit packaging
- Logistics and warehousing
- Cotton and textile-related loads
Product suitability depends on the load weight, package shape, edge condition, required breaking force and strapping equipment. Use corner or edge protection where the load could cut into the strap or be marked by concentrated tension.
Product Cases
Timber and Wood Products
PET strapping can be used to unitize timber and wood products for handling or transport. The correct strap size depends on the bundle weight, edges and required holding force.
Metal Products
Available high-breaking-force models can be considered for metal-product bundling. Strap selection and edge protection should be checked against the load profile.
Building Materials
PET strapping is listed for securing building materials. Select the model according to load weight, package dimensions and transport conditions.
Company Strength
Foshan Weide Chuangyi Packaging Materials Co., Ltd. is a subsidiary of Foshan Xinmingyi Packaging Materials Co., Ltd. The business began in 2004 and operates from a 10,000-square-metre facility in Foshan, China.
Its product range includes PP strapping, PET strapping, automatic and semi-automatic machine strapping, stretch film and paper corner protectors.
Packaging ＆ Shipping
Available packaging on the current product page:
- Kraft paper
- Stretch film
Roll weight options are listed as 15 kg, 20 kg and 25 kg. The specification table currently shows 20 kg per roll for every listed model. Confirm the required model, roll weight, packing method and shipping quantity before quotation.
FAQ
What PET strap sizes are available?
The current product range covers widths from 9 mm to 32 mm. Listed thicknesses run from 0.4 mm to 1.40 mm. Available dimensions vary by model, so refer to the specification table.
How do I choose the right PET strapping model?
Start with the load weight, package dimensions, edge condition and required breaking force. If the strap will be used with a machine, also provide the machine brand, model and required strap dimensions.
What is the breaking force of the PET strapping?
The listed breaking force ranges from 1,920 N to 15,360 N. Each value applies to a specific width and thickness combination. A higher value should not be selected without considering the package, equipment and required tension.
Is the strap available in different roll lengths?
Yes. The listed roll lengths range from 400 m to 3,220 m. Roll length changes with strap width and thickness.
What colors are available?
The current page lists green and black. Other color requirements should be submitted for confirmation.
Can the PET strap be customized?
Customization is supported. Send the required width, thickness, roll length, roll weight, color, breaking force and application. Availability remains subject to specification review.
Can this PET strap run on my strapping machine?
The product is listed for use with strapping machines, but compatibility depends on the strap dimensions and machine requirements. Send the machine brand, model or nameplate information for checking.
